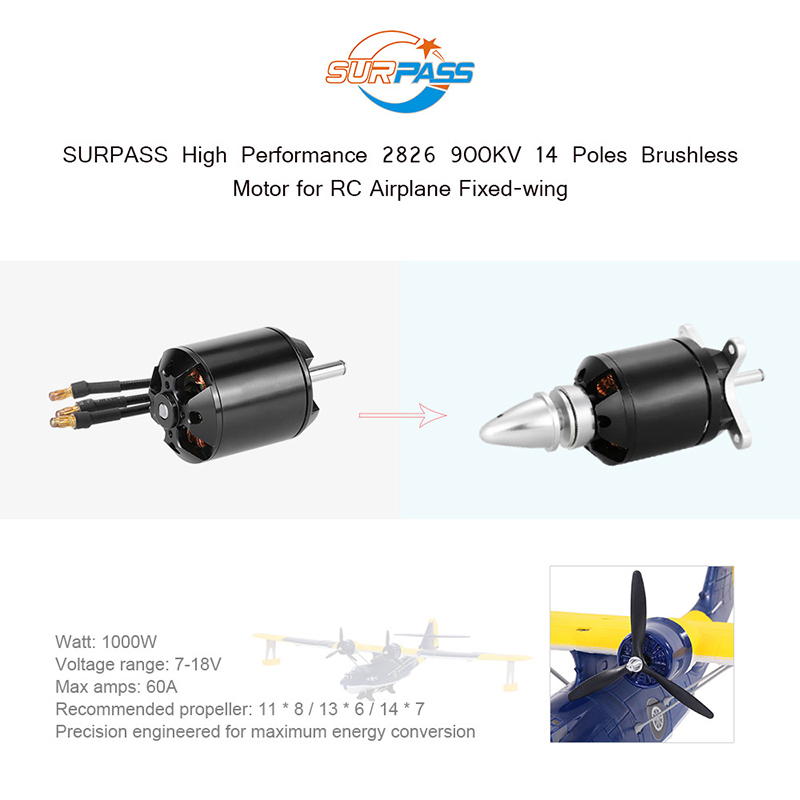

The original SURPASS 2826 900KV brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for RC airplane fixed-wing.
Features:
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion
Specifications:
Brand name: SURPASS
Item No.: C2826-05
KV(RPM/Volt): 900KV
Watt: 1000W
Voltage range: 7-18V
Max amps: 60A
IO: 2.2A
Resistance: 0.033

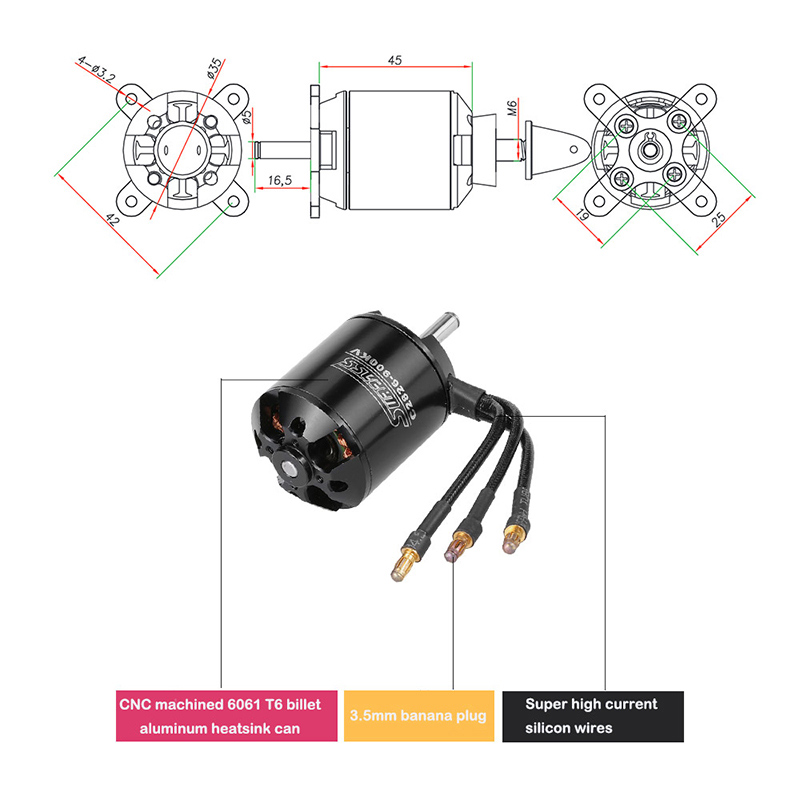

Motor size:
Ø35 * 48mm
Staror size: 2826
Recommended propeller: 11 * 8 / 13 * 6 / 14 * 7
Connector: 3.5mm golden banana connector
Weight: 157g
Package Information:
Package size: 8 * 6.5 * 5cm / 3.2 * 2.6 * 2.0in
Package weight: 196g / 6.9oz
Gift box package
Package List:
1 * SURPASS 2826 900KV Motor
