The set includes a S3660 3300KV motor, a 60A ESC and a program card, which is perfectly fit for the 1/10 RC car. This motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price. The ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity. Equipped with programming card allow you to conveniently program your ESC settings.
Features:
Efficient and high-speed ball bearings
High purity copper windings maximizes efficiency
Precision engineered for maximum energy conversion
Precision balanced rotor,smoothness for best reliability and maximum RPM
Super smooth and accurate throttle linearity
Fast response to throttle input
Mutiple protection features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, Throttle signal loss protection, Motor blocked protection

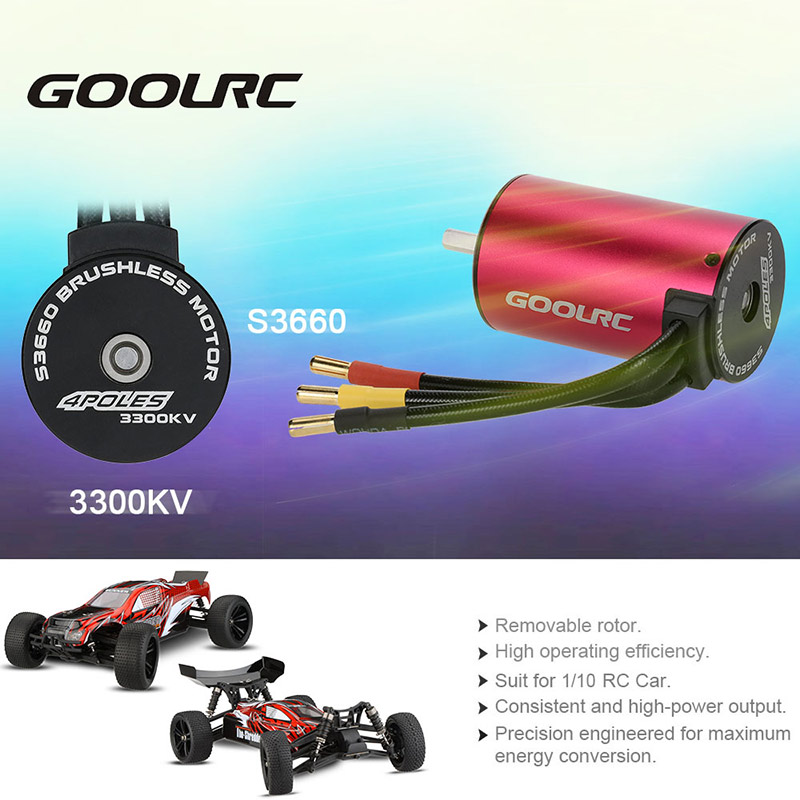

Motor Specifications:
Brand: GoolRC
Item No.: S3660
KV(RPM/Volt): 3300KV
RPM: 50000
Watt: 1200W
Max current: 80A
Max voltage: <15V
Ressistance: 0.0095

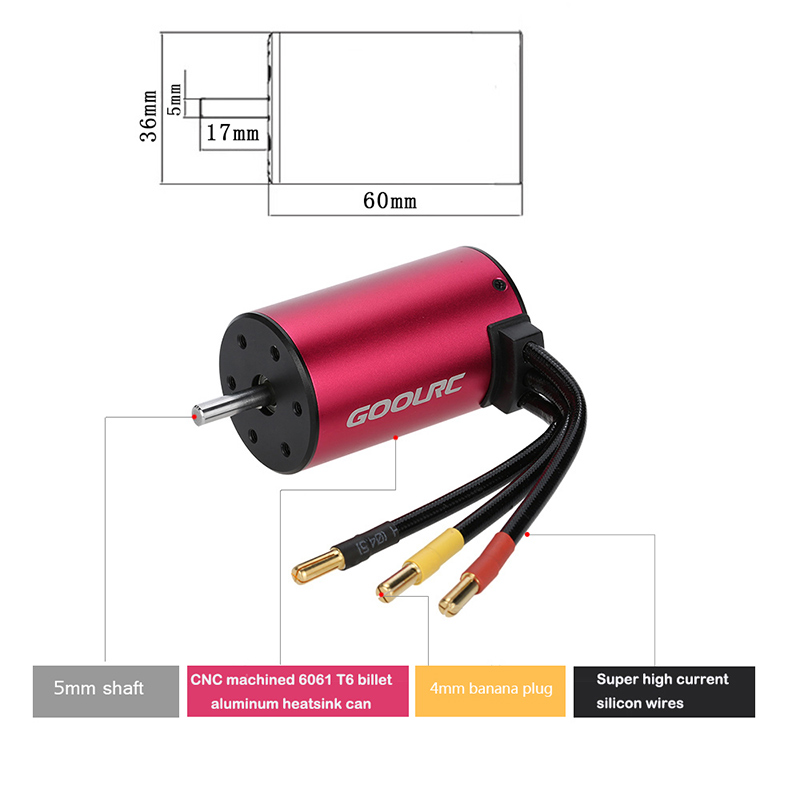

Diameter: 36mm
Length: 60mm
Shaft length: 17mm
Shaft diameter: 5mm
Connector: 4mm golden banana connector
Weight:218g

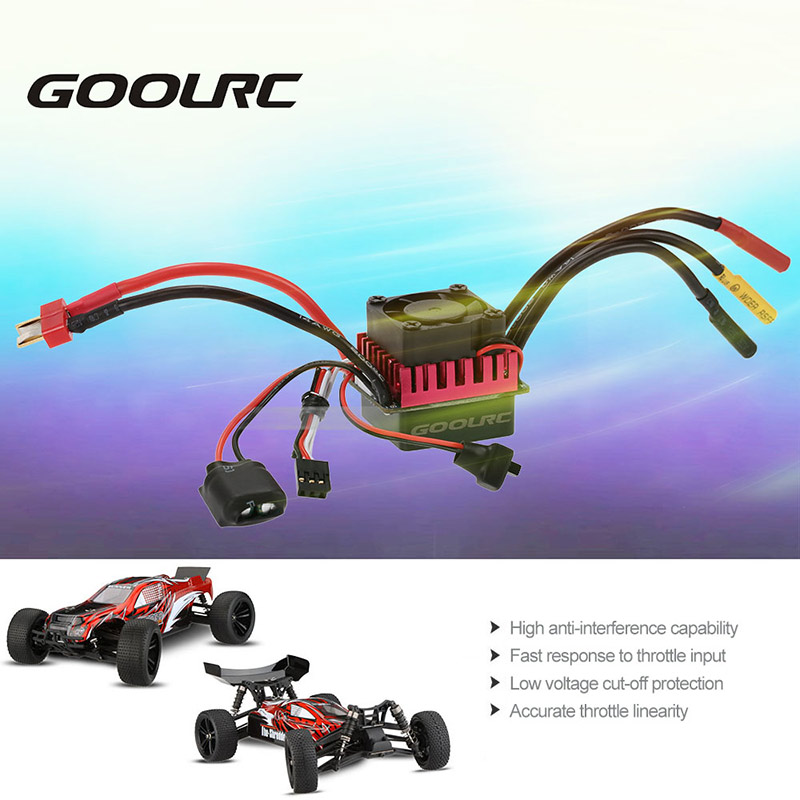

ESC Specifications:
Brand name: GoolRC
Item No.: S-60A
Constant current: 60A
Burst current: 320A / 10sec
Battery: 2-3S Li-Po / 4-9S Ni-Mh
BEC: yes
BEC output: 5.8V / 3A

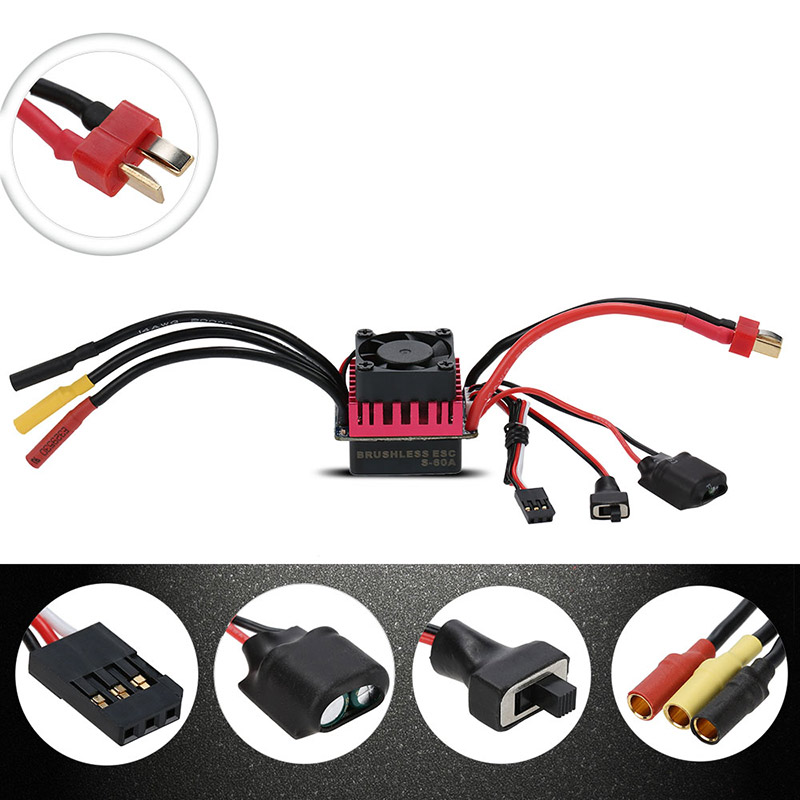

Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 43 * 33 * 35mm / 1.7 * 1.3 * 1.4in(without cables)
Weight: 75g / 2.6oz(with cables)

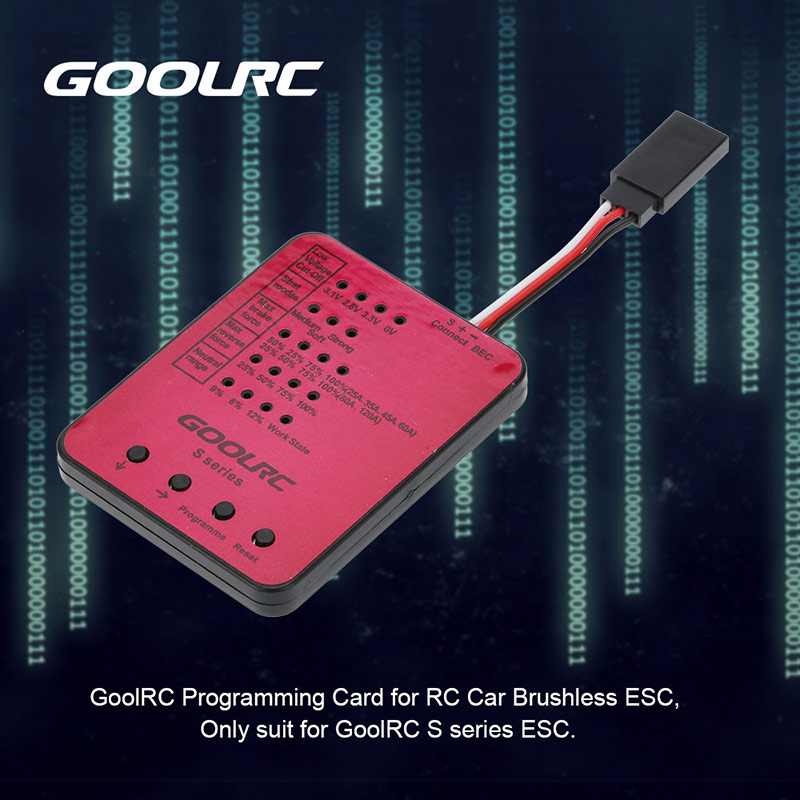

Program Card Specifications:
Brand: GoolRC
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode：medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
Package Information:
Package size: 10 * 8 * 6cm / 3.9 * 3.2 * 2.4in
Package weight: 343g / 12.1oz
Gift box package
Package List:
1 * GoolRC S3660 3300KV Motor
1 * GoolRC 60A ESC
1 * Program Card
