The set includes a S3650 3900KV motor, a 60A ESC and a program card, which is perfectly fit for the 1/10 RC car. This motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price. The ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity. Equipped with programming card allow you to conveniently program your ESC settings.
Features:
Efficient and high-speed ball bearings
High purity copper windings maximizes efficiency
Short stator, less wire, lower resistance, more power
Consistent and high-power output provide longer run time
Super smooth and accurate throttle linearity
Fast response to throttle input
Mutiple protection features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, Throttle signal loss protection, Motor blocked protection

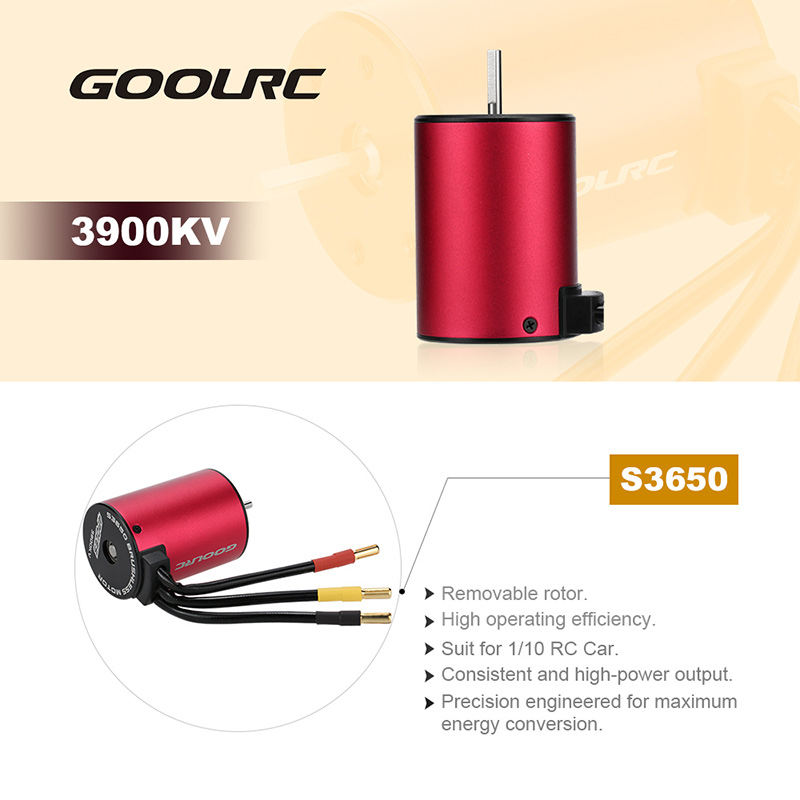

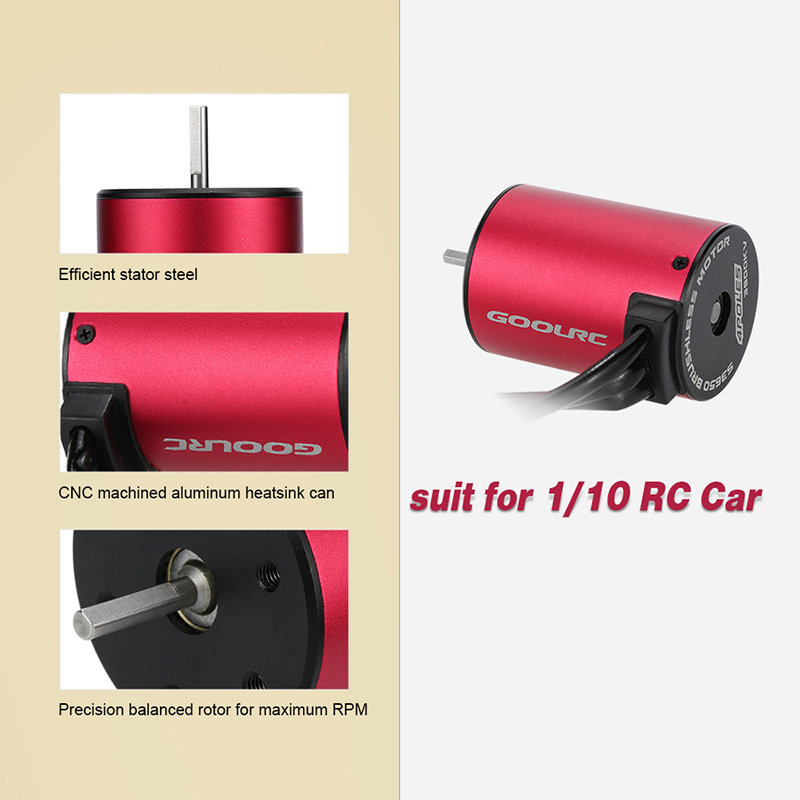

Motor Specifications:
Brand: GoolRC
KV(RPM/Volt): 3900KV
Max Amps: 69A
Watts: 900W
Rotor poles: 4
Resistance: 0.0081
Max voltage: <13V
Max RPM: 50000

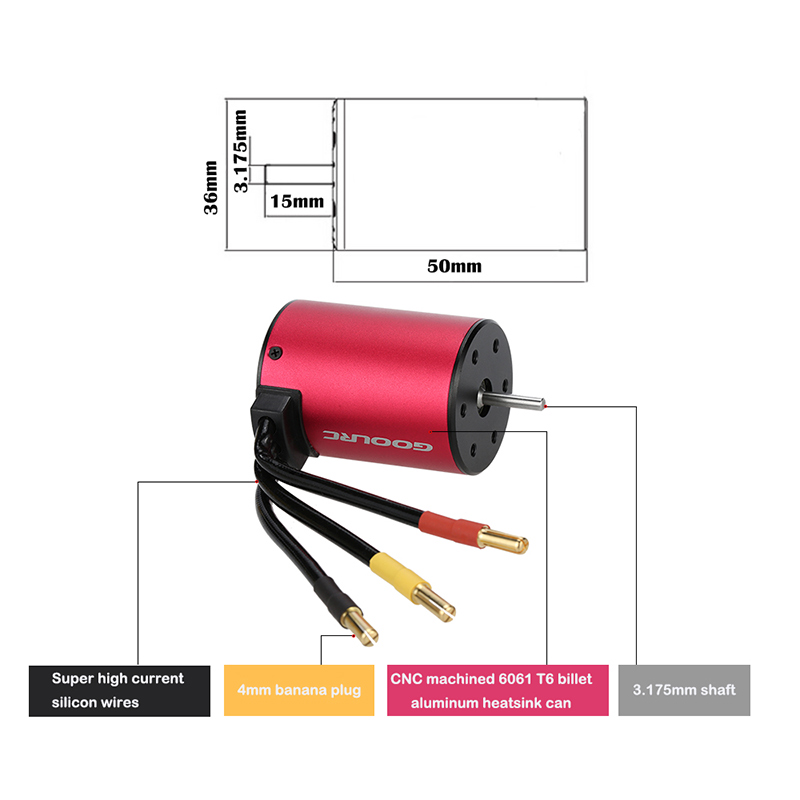

Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
Item weight: 178g

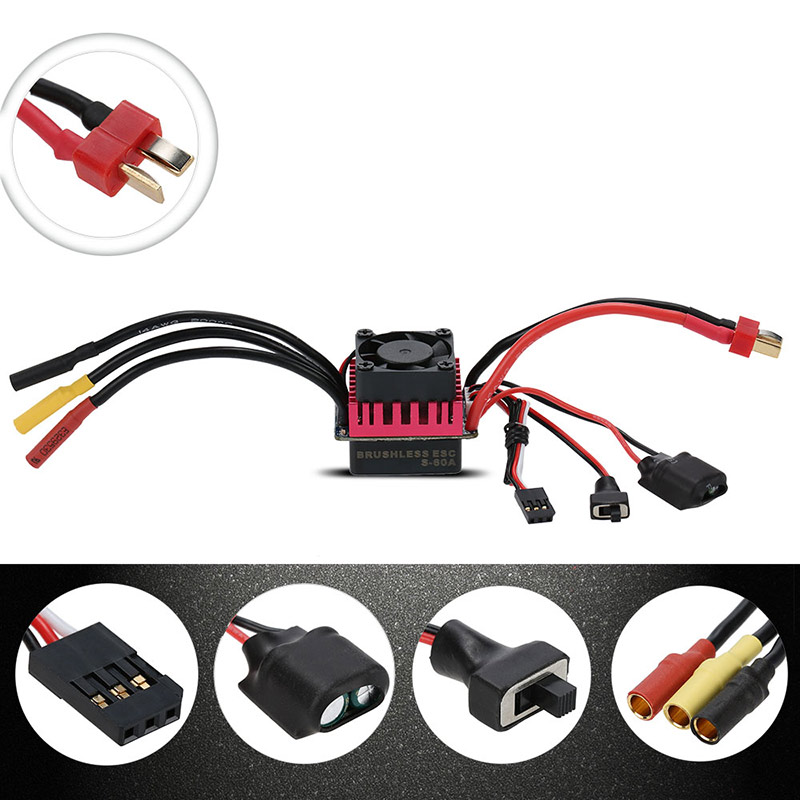

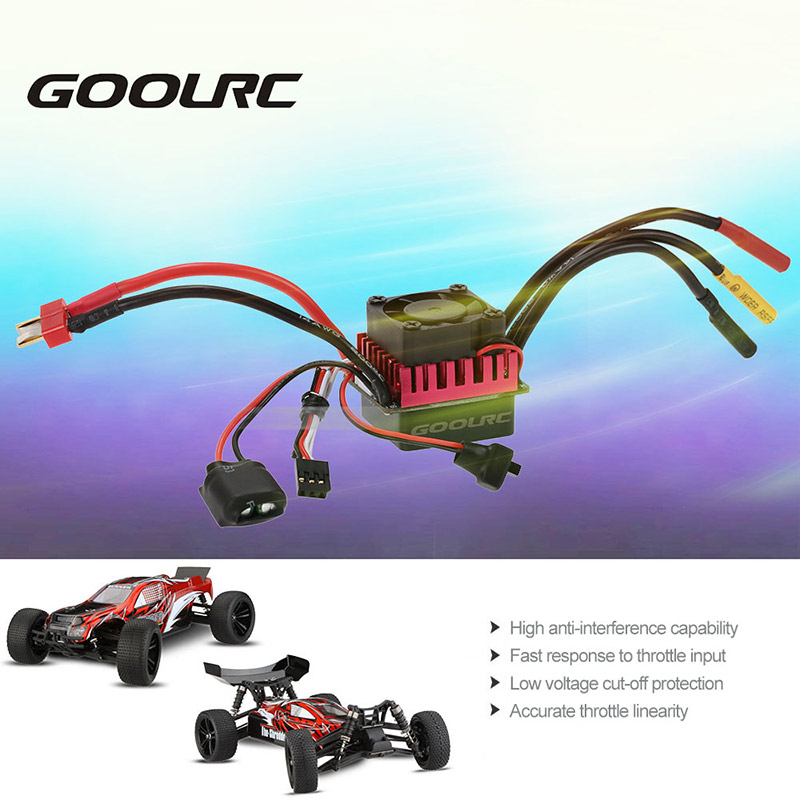

ESC Specifications:
Brand name: GoolRC
Item No.: S-60A
Constant current: 60A
Burst current: 320A / 10sec
Battery: 2-3S Li-Po / 4-9S Ni-Mh
BEC: yes
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 43 * 33 * 35mm / 1.7 * 1.3 * 1.4in(without cables)
Weight: 75g / 2.6oz(with cables)

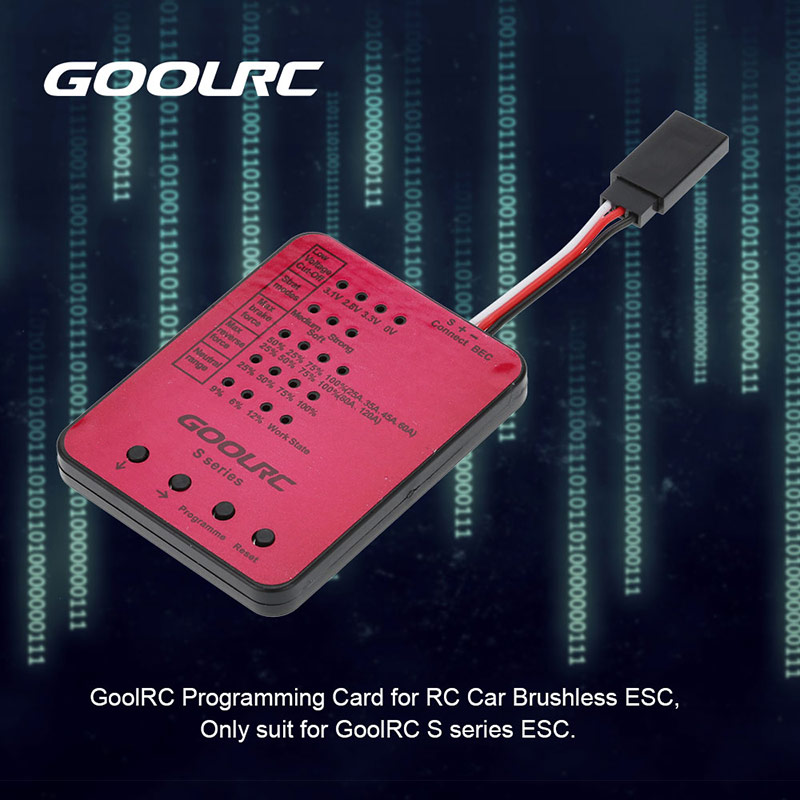

Program Card Specifications:
Brand: GoolRC
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode：medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
Package Information:
Package size: 10 * 8 * 6cm / 3.9 * 3.2 * 2.4in
Package weight: 306g / 10.8oz
Gift box package
Package List:
1 * GoolRC S3650 3900KV Motor
1 * GoolRC 60A ESC
1 * Program Card
