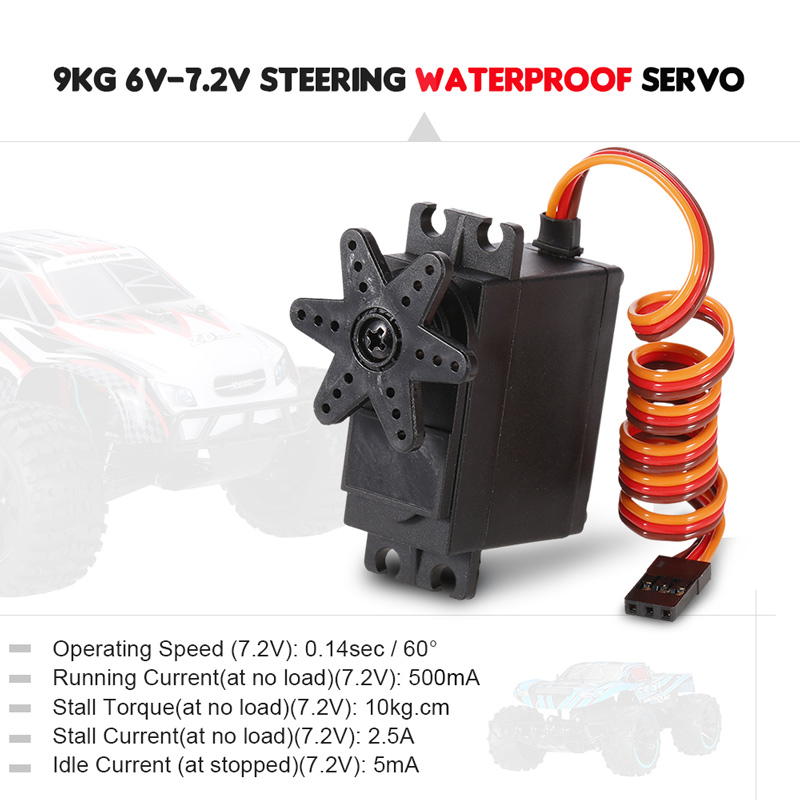

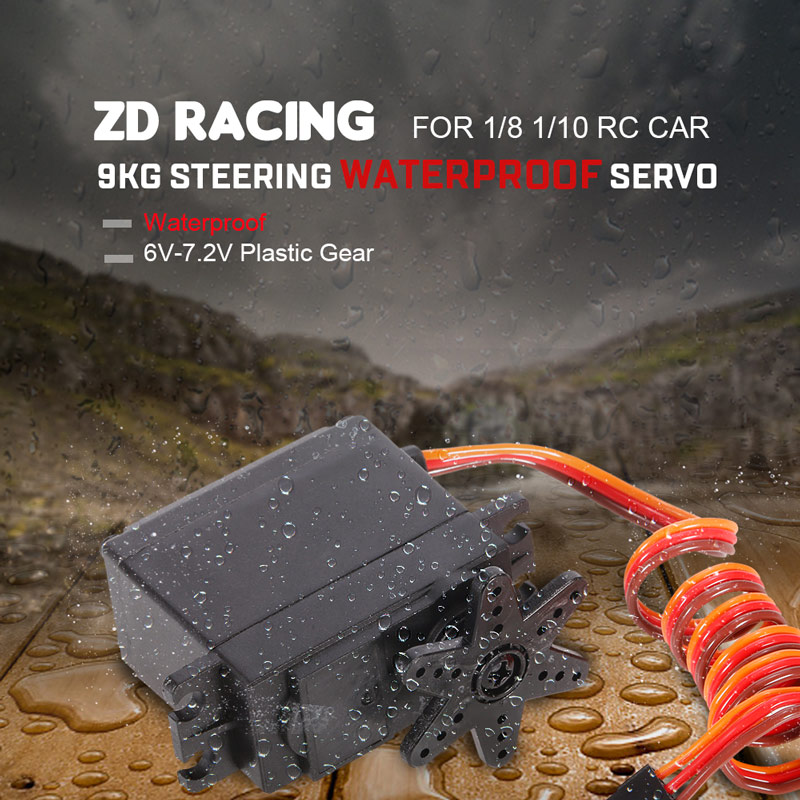

The high quality waterproof 9kg servo, which is perfectly fit for 1/10 1/8 RC car.
Features:
100% brand new
Modified design and high quality
Fully body waterproof
9kg large torque. 9kg·cm @6V
Perfectly fit for 1/10 1/8 RC car
Specifications:
Brand: ZD Racing
Item name: Steering Servo
Operating Speed (6.0V): 0.16sec / 60°
Operating Speed (7.2V): 0.14sec / 60°
Running Current(at no load)(6.0V): 400mA
Running Current(at no load)(7.2V): 500mA
Stall Torque(at no load)(6.0V): 9kg.cm
Stall Torque(at no load)(7.2V): 10kg.cm
Stall Current(at no load)(6.0V): 2.3A
Stall Current(at no load)(7.2V): 2.5A
Idle Current (at stopped)(6.0V): 4mA
Idle Current (at stopped)(7.2V): 5mA
Dimensions: 41 * 38 * 20mm
Weight: 56g
Connector Wire Length: 300mm
There may be some deviation due to manual measurement.
Package Information:
Package size: 10 * 6.5 * 4cm / 3.9 * 2.6 * 1.6in
Package weight: 73g / 2.6oz
Poly bag package
Package include:
1 * 9KG Steering Servo
1 * Fittings Set
