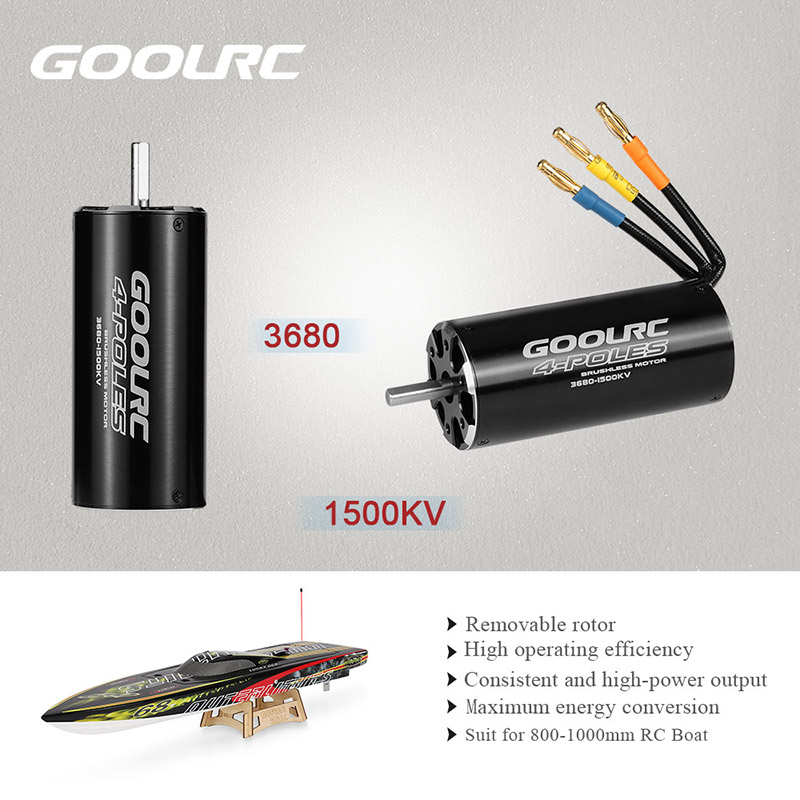

The original GoolRC 3680 1500KV 4 poles sensorless brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for 800-1000mm RC boat.
Features:
4 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Removable/replaceable rotor
Precision engineered for maximum energy conversion
Specifications:
Brand name: GoolRC
Item No.: 3680
KV(RPM/Volt): 1500KV
RPM: 50000
Watt: 2000W
No load current: 1.6A
Max voltage: 34V

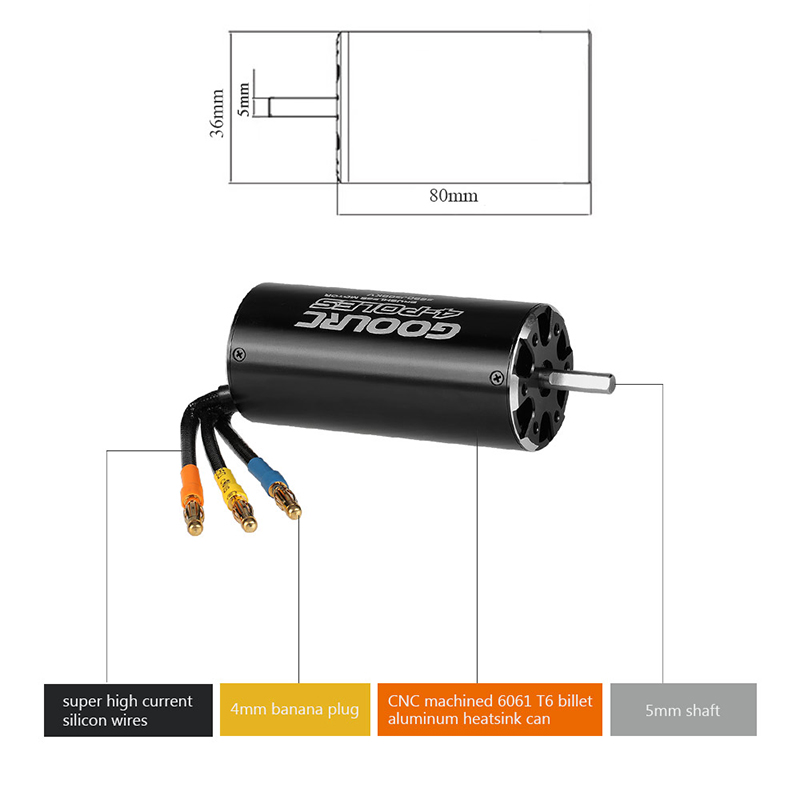

Diameter: 36mm
Length: 80mm
Shaft diameter: 5mm
Connector: 4mm golden banana connector
Weight: 313g
Package Information:
Package size: 10.3 * 8.1 * 6.2cm / 4.1 * 3.2 * 2.4in
Package weight: 346g / 12.2oz
Gift box package
Package List:
1 * GoolRC 3680 1500KV Motor
