SKYRC 380W AC/DC Switching Power Supply Adapter 100-240V AC to 24V DC Power Adapter for SKYRC B6 Nano ISDT PC-4860 BG-8S Q6 Pro DC Charger

HKD 1645.24 915.25
stecker



Stock 0
Number

Features:
*

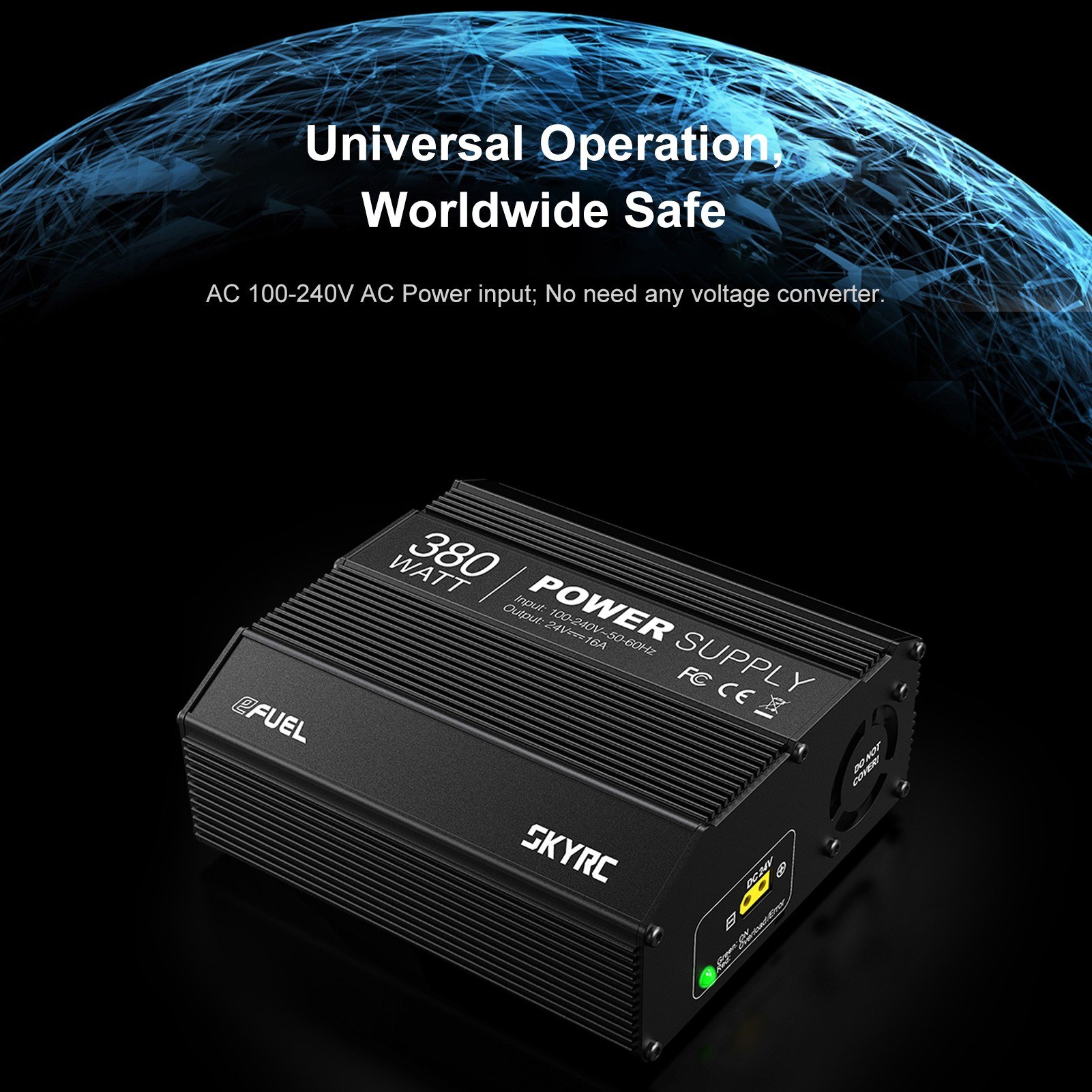

Universal Operation, Worldwide Safe: AC 100-240V AC Power input; No need for any voltage converter. Built for most demanding pocket charger, converts standard household power 100-240V AC to 24V DC power and supply up to 16 amperes of continuous power.
* Active PFC: Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency.  Active PFC, which is integrated into SkyRC 380W/16A regulated power supply, can provide higher power utilization.
* Intelligent Air Cooling System: Adopting the cooling system, the fan will be initiated automatically when the operating temperature reaches 50 degrees.
* Overload/Error Indication: The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.
*Safer and Reliable: Short-circuit protection on output, Over current protection, Over temperature protection, Overload protection, and Over voltage protection.

Specifications:
Brand: SKYRC
Item name: POWER SUPPLY 380W
Case Size: 165x139x59.5mm
Weight: 1.2kg
Main Material: Aluminum
Voltage: 100-240V
Input AC Frequency: 50-60Hz
Output Current: 16A
Output Voltage: 24V DC±0.5V
Output Voltage Ripple: <300mV
Power Efficiency: 88%
Power Factor: >0.98

Current Overload Protection: 17A ±1A
Over Temperature Protection: <80℃
Cooling Method: Cooling Fan

Operating Temperature: 0-40℃
Operating Humidity: 0-90%

Package information:
Package size: 26.5*18.5*9.5cm
Package Weight: 1400g

Package list:
1 * Main body
1 * Cable
1 * Power line
1 * Manual
