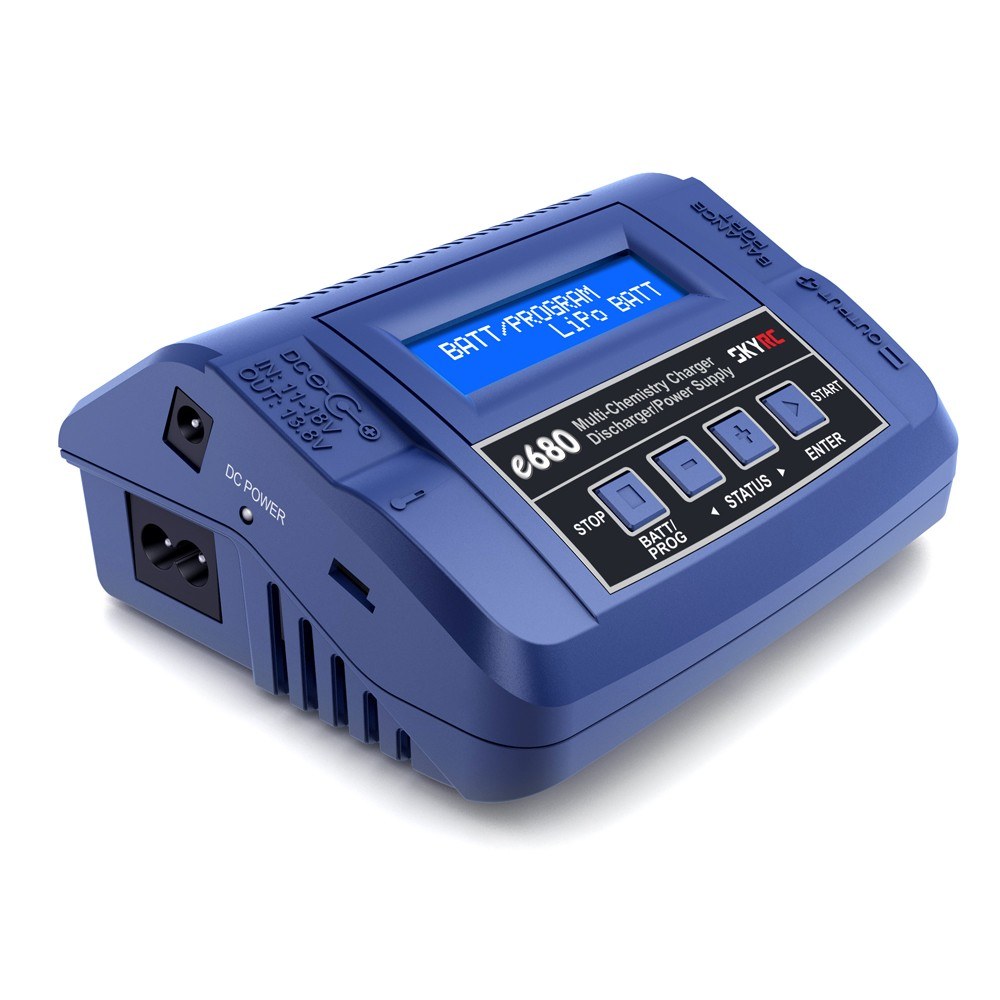

As the enhanced version of e660, SkyRC e680 is suitable for all current battery types: LiPo, Li-ion, LiFe, NiCd, NiMH, PB and also new generation LiHV with end voltage 4.35V, with the maximum 80W charge power and 8A charge current. Especially it supports DJI Mavic Battery with maximum 4A charge power.
Feature:
SkyRC e680 charger is integrated with DC power supply, which output voltage is 13.8V with power ranging from 10W to 80W. That is really convenient for drivers to power their DC devices, such as tire warmer, Pit light, etc.
SkyRC e680 can charge DJI Mavic battery with the maximum charge current of 4A. The Mavic charging cable(SK-600023-06) is not included in the package. You need to purchase it separately.
SkyRC e680 can charge AGM battery and also can be used for charging PB battery at very low temperatures.
When the temperature limit is reached, the process will be terminated. This function is available by connecting optional temperature sensor cable (SK-600040-01), which is not included in the package. You need purchase it separately.
Temperature controlled 8000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.
Specifications:
Product name: rc Balance Charger
Item brand: SKYRC
Model: e680
Material: Plastic
Color: Blue
Excellent performance data max.: 8A/80W
Integrated power supply: 13.8V/80W
Internal balancer: XH connector
Suitable battery: LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb und DJI Mavic batteries
Battery cells: LiPo/LiFe/LiIon/LiHV 1s-6s
NiMH/NiCd 1s-15s
Pb Battery 2V - 20V
Input voltage AC: 100V-240V
Input voltage DC: 11V-18V
Max charge power: 80W
Max discharge power: 10W
Charge current range: 0.1A - 8.0A
Discharge current range: 0.1A - 2.0A
Balancer current: max.300mAh
Item size: 135 * 110 * 60mm
Item weight: 390g
Package information:
Package size: 20 * 16.8 * 7.5cm / 7.9 * 6.6 * 2.9in
Package weight: 710g
There might be deviation due to manual measurement
Package list:
1 * e680 Charger
1 * Connecting Cable
1 * Plug Cable
1 * Cells Charging Board
1 * User Manual
