UT216 series true RMS digital clamp meter is a new-generation practical electrotechnical measurement meter which has the features of high reliability, high safety, automatic range and handheld type, has full-range overload protection and unique appearance design, is more excellent in performance, and is an ideal tool for detection, maintenance and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power and circuit equipment.
Features:Display Count: 6000
Auto Range: √
Jaw Capacity: 30mm
True RMS: √
Diode Around 3.0V: √
V.F.C.: √
NCV: √
Data Hold: √
Zero Mode: √
Relative Mode: √
MAX/MIN: √
Inrush Current: √
LCD Backlight: √
Analogue Bar Graph: 61

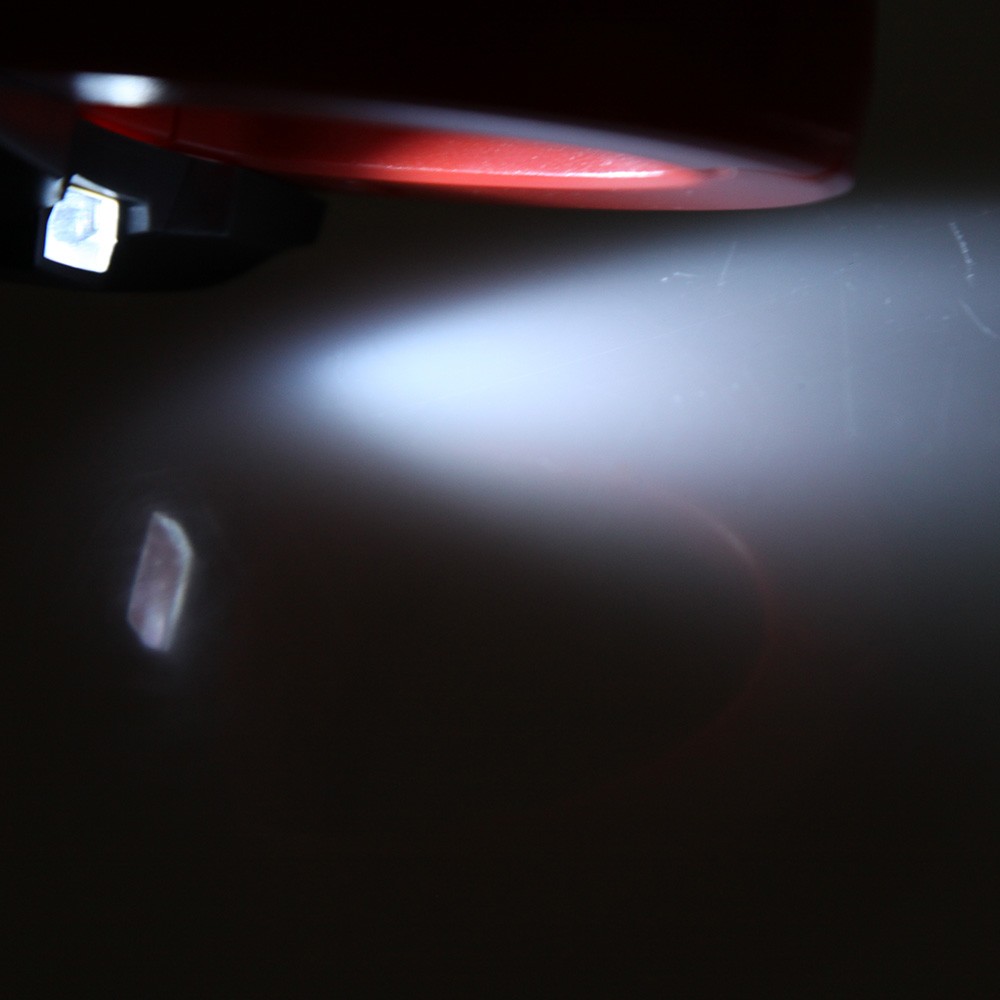

Flashlight: √
Auto Power Off Around 15 Minutes: √
Continuity Buzzer: √
Low Battery Indication: ≤3.6V
Input Protection: √
Input Impedance for DCV: ≥10MΩ
Specifications:Model: UT216C
AC Current (A): 60A/600A ±(2.5%+5)
DC Current (A): 60A/600A ±(2.5%+5)
AC Voltage (V): 6V/60V/600V/750V ±(1.2%+5)
DC Voltage (V): 600mV/6V/60V/600V/1000V ±(0.8%+1)
Resistance (Ω): 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(1%+2)
Capacitance (F): 60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(4.0%+5)
Frequency (Hz): 10Hz-1MHz ±(0.1%+4)
Temperature (°C): -40 °C ～ 1000°C ±(2.5%+3)
Temperature (°F): -40 °F ～ 1832°F ±(2.5%+4)
General Characteristic:Power: 3 * AAA 1.5V
(not included)Product Net Weight: 231.7g
Product Size: 220mm * 75mm * 40mm
LCD Size: 38mm * 24 mm
Product Color: Red and Grey
Package Size: 23.5 * 9 * 6cm / 9 * 3.5 * 2.5in
Package Weight: 442g / 1lb
Package List:1 * UNI-T UT216C Digital Clamp Meter
1 * k-type Thermocouple Probe
1 * Test Lead
1 * English Manual
